Specification; all SUS316.
Stainless tank for reactor: 650L with CIP ball and manway
Stainless tank for PL mixing tank: 120L
Rotary cavitation stainless 304: 480V/60Hz/3P/11Kw, 3,000LPH
Ultrasonic cavitation: 20KHz/2,000W
Emulsion capacity: min. 500L per hour
Net weight: 300Kg
Plate and control panel included
Process capacity
Nanoemulsion oil: 250L per hour,
Infusion drink: 1,000L per hour
Dimension: 3.0m in length x 1.1m in width x 2.2m in height

.

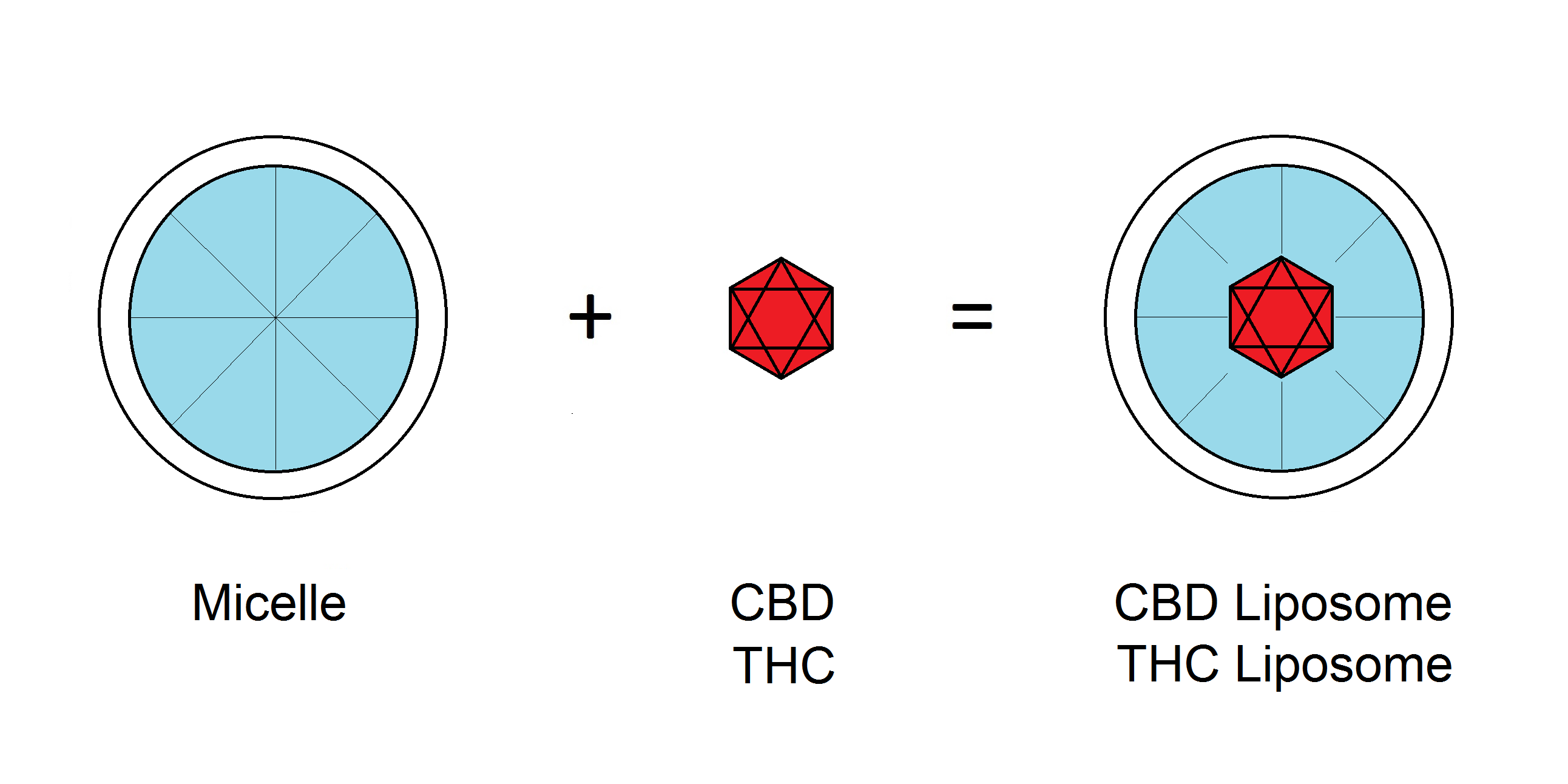

Nano liposome delivered CBD/THC oil
CBD/THC extract oil is insoluble which need water soluble to make drink and edible
products for better drug delivery bioavailability and for better therapeutic effect.
An excellent food emulsifier of phospholipid with cavitation nanoemulsion
technology can be used to make soluble CBD/THC liposome.
